Formax ATLAS-TRIO15 Slitter/Cutter/Creaser

The ATLAS-TRIO15 Slitter/Cutter/Creaser from Formax provides an easy, revolutionary solution for digital print finishing. Operators may now slit, cut, crease, and fold in a single pass on one machine- ideal for high-speed, professional production environments. Utilizing an advanced, upper-belt tri-suction feed system and automatically elevating feed table, the ATLAS-TRIO15 can process sheets up to 13" x 27.5" in weights ranging from 120-350 gsm. Any workflow can benefit from the ATLAS-TRIO's high speeds and multimedia capabilities: create business cards, brochures, booklet covers, postcards, greeting cards, and much more.

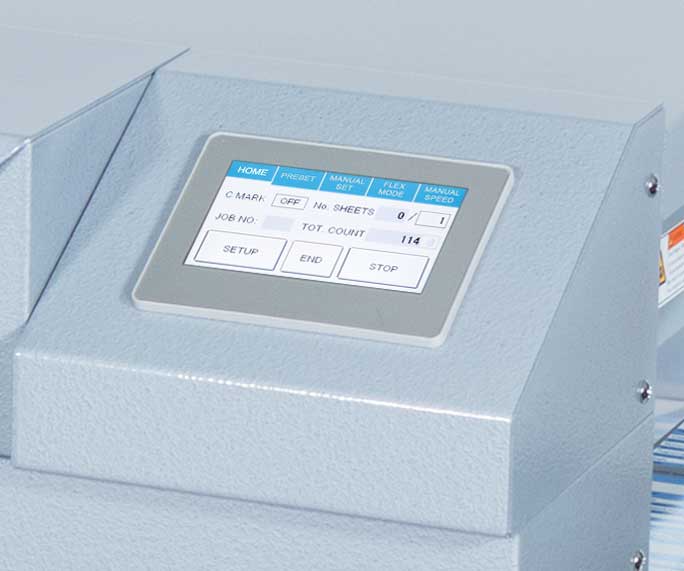

This powerful unit is controlled by a convenient 4"" touchscreen control panel and offers internal memory storage up to 150 custom jobs. Other features include double-feed detection to reduce jams, skew adjustment, side alignment guide, cut-mark registration, and two standard slitting guides. Combined with the optional AC-10 Folder, the ATLAS-TRIO15 allows users to take large sheets and cut the leading and trailing edges, bleed trim the top and bottom, crease, and fold for professional, finished six-panel brochures- all with one machine! Boasting high-speed output, large media size compatibility, and user-friendly controls, the ATLAS-TRIO15 is an efficient, versatile, and ideal fit for a modern digital print environment.

Features:

• High-Speed Cutting/Slitting: Up to eight 12" x 18" sheets per minute (24-up business cards)
• High-Speed Creasing: Up to 5,000 letter-size sheets per hour
• Tri-Suction Feed System: Accurately feeds and handles even large, heavy stocks
• 4" Color Touchscreen: Easily program and make adjustments with graphics-based menus and 3 modes
• Programmable and Pre-Set Jobs: Stores up to 150 custom job settings for quick recall
• Automatically Elevating Feed Table: Separates printed sheets to prevent roller marks or misfeeds on finished pieces
• Single-Pass Processing: Streamlines slitting, cutting, and creasing on one machine
• Integrated Slitting Guides: Marked for common applications including postcards, business cards, and bleed trim jobs
• Double-Feed Detection: Helps avoid waste and paper jams
• Cut-Mark Sensor: Reads any image drift, then automatically registers to ensure consistent finishing
• Optional AC-10 Feeding Unit: Adds folding to the cut/crease/slit process

Specs:

For full specification sheet click on the "Resources" tab on this page.

This item is not currently available online. Please contact us for pricing information.
