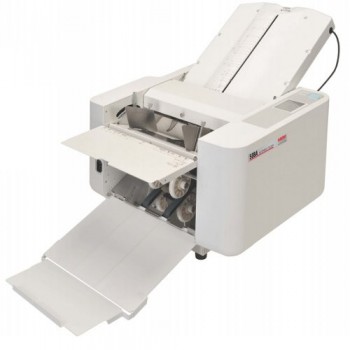

MBM 508A Folder

The MBM 508A Folder provides automatic, programmable folding for print shops, in-plants, offices, and mailing operations at the touch of a button. The 408A boats a 500 sheet capacity and the ability to fold up to 14,400 sheets per hour. The unit is pre-programmed with 18 standard folds and can store up to 24 custom jobs. An automatic 3 roller friction feed system and Color LCD touchscreen control panel provide easy set-up and fast, reliable folding. Operators can utilize a test button that folds 2 sheets for inspection while automatically sensing and displaying paper size. An automatic conveyor, extended exit tray, and self-setting exit rollers nicely round out this user-friendly, reliable folding machine.

Features:

Sheets Per Hour: Up to 14,400

Paper Size: 312" to 11" x 17"

Paper Weight: 12 lbs. - 80 lbs.

Sheet Capacity: Up to 500

Automatic 3-Roller Friction Feed System: Featuring automatic folding position setting to ensure reliable results

Programmable Memory: Comes pre-programmed with 18 standard folds and can store 24 custom folds

Double Feed Detection Sensor: Prevents mis-folded papers being contaminated to outputs

LED Touchscreen Control Panel: Includes 4-digit counter with addition and subtraction functions

Extended Exit Tray: Provides neat stacking of folded sheets

Auxiliary Paper Guide: For cross folding

Skew and Micro-Adjustment Dials: Allow operators to fine-tune results

Quick Release Rollers: For easy cleaning and maintenance

Fully Enclosed Fold Tables: For quiet operation

Optional Accessories: Scoring, micro-perforating, and slitting units

One Year Limited Warranty, Excluding Wearables

Specs:

MBM 508A Folder Spec Sheet
