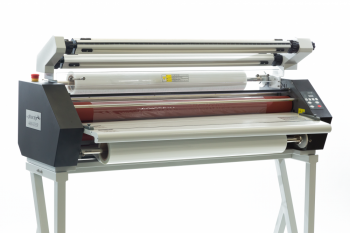

Phoenix™ 4400-DHP Thermal & PSA Mounting Laminator

The Phoenix™ 4400-DHP Thermal & PSA Mounting Laminator continues the evolution of the Southwest line of Phoenix laminators, offering a sleek design full of useful features to complete both thermal and PSA applications. The 4400-DHP promises long-term durability and reliable performance at an economical price point which will easily fit into your budget.

Running at a speed of up to 8 feet per minute with large 312" heated rollers, the Phoenix 4400-DHP meets high-volume production requirements while maintaining heat consistency for beautiful output. The unit's 44" width capacity is an ideal match for your digital wide format output for both PSA and thermal finishing, encapsulating or mounting in both applications. A safety photo eye prevents entanglement with the unit, and a standby mode activates after 3 hours of non-use; after 4 hours, the heaters shut off. Applications include placemats, trade show graphics, rigid displays, POP displays, flexible displays, window graphics, banners, and much more!

Features:

Wide Capacity: Accepts materials up to 44" wide

Mounting Capacity: Mounts substrates up to 14" thick

Film Thickness: Runs 1.5 mil to 10 mil films and PSA

Core Diameter: Accepts 214" and 3" cores

Independent Heat Controls: Adjustable temperature controls with digital readout offers complete control over operation

Variable Speed: Run at speeds up to 8 feet per minute

Heated Silicone Coated Rollers: Large 312" heated silicone-coated rollers ensure even heat and pressure distribution

PSA Liner Rewind: Winds up material coming from unit

Cooling Fans: Ensure flat output, useful for heavier films

J Channel: For easy loading on bottom roll

Independent Tension Control: For maximum control over torque and speed

Sleep Mode and Auto Shut-Off: Sleep mode activates after 3 hours of non-use; heaters shut off completely after 4 hours

Safety Photo Eye: Prevents entanglement with unit

Electrical Requirements: 240 VAC, 15 Amps, 615P NEMA Plug

Specs:

Phoenix 4400-DHP Spec Sheet

Demonstration Video:


Must ship truck- call for a freight quote!
