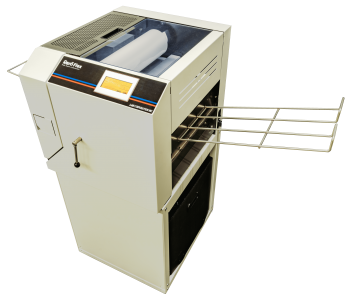

Revo Flex Automatic Laminator

The Revo Flex Automatic Laminator will take you to the next level of automatic laminating. The Revo Flex features a four side trimming system with encapsulation. The cut positions are fully adjustable to create the perfect flush cut or custom size encapsulation boarder. The machines’ flexibility eliminates the need for additional processing to trim all four sides of a sheet. Feeding, laminating, cutting and trimming are now fully automated with the simple press of the start button!

Features:

●Max Paper Width: 13”

●Max Laminating Width: 12.6”

●Margin Control: Ability to set margins for all four sides with or without margins

●Laminating Film Thickness Available Now: 1.5, 3, 5 mil

●Laminating Film Thickness Available Summer 2023: 1.5, 3, 5, 10 mil

●Lamination Film Types Available Now: Gloss and Matte

●Lamination Film Types Available Summer 2023: Gloss, Matte, Soft Touch, Release Liner for Single Sided

●Warm-up Time: 5 minutes

●Temperature: Variable

●Feed Tray Capacity: Up to 200 sheets, varies by stock

●Adjustable Feature: Resist roller pressure to prevent multi-sheet feeds and sheet feed skew adjustment

●Adjustable Speed Settings: 27.5” to 78” per minute

●Laminating Speed: Up to 420 sheets per hour

●Sleep Mode: Lowers temperature to save power if not in use after 30 minutes

●Digital Panel: Used for all machine settings

●Cutting: Internal rotary trimmers for all four edges

●Included with Purchase: Stand and waste container

●Warranty: 1-year parts and labor

●Ships: Via truck

Supplies:

●Gloss Film: 1.5 mil (12.6” x 984’), 3 mil (12.6” x 492’), 5 mil (12.6” x 328’)

●Matte Film: 1.5 mil (12.6” x 984’), 3 mil (12.6” x 492’), 5 mil (12.6” x 328’)

Specs:

Revo-Flex Spec Sheet
